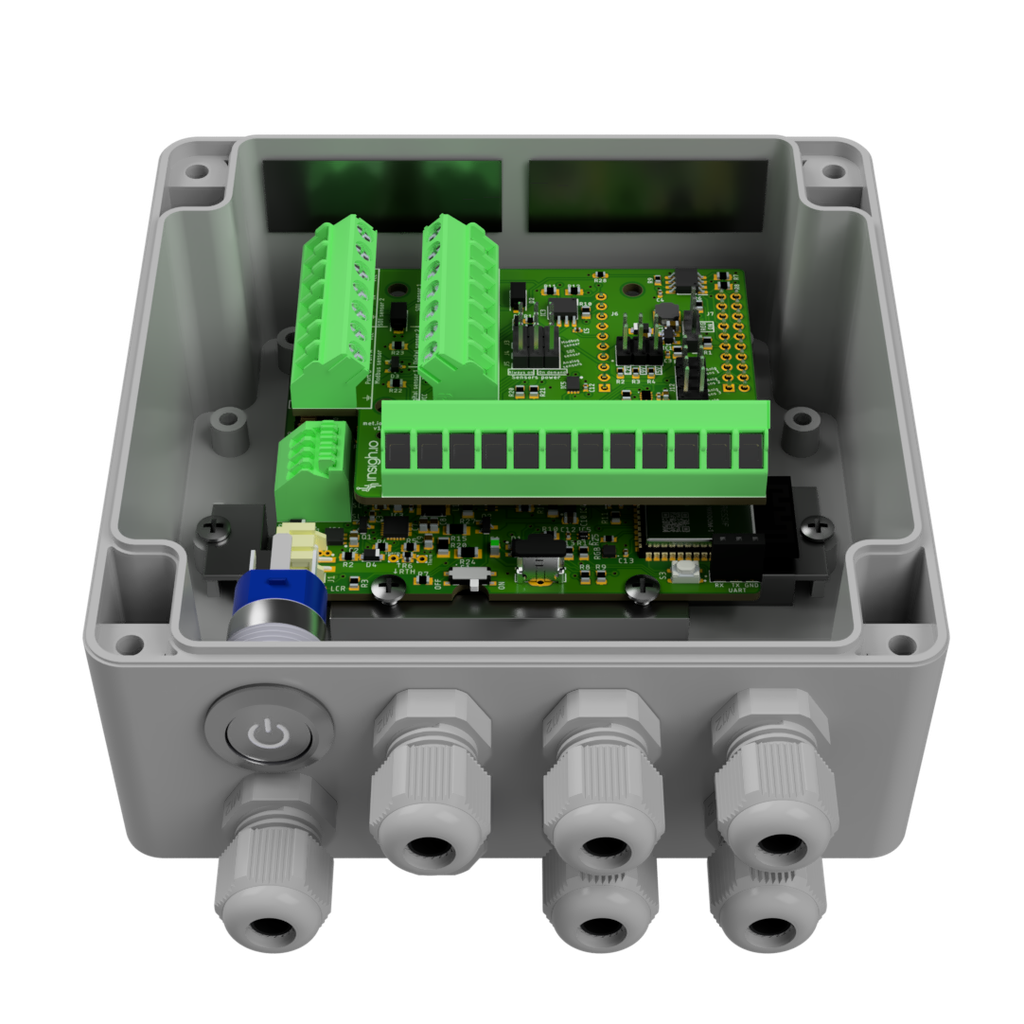

insigh.io Enviro IoT Logger

The insigh.io IoT logger includes everything you need to setup your agri-tech or enviro-tech IoT project.

It includes the Enviro shield, a versatile sensor expansion board that can host a wide variety of sensors like micro-climatic weather stations, air quality monitors, and radar and pressure sensors measuring water depth/height in lakes/rivers.

Kit components

• Main board

• Enviro Sensor Shield with support of

  • SDI-12, Modbus-RTU, Analogue, 4-20mA and Pulse Output interfaces

  • 5V/9V/12V DC excitation voltage levels

• Box suitable for outdoor deployment with all peripherals

  • Antennas (Cellular & GNSS)
  • External power switch
  • Sensor glands
  • Vent plug
  • Rechargeable battery 4000mAh
  • Pre-loaded SIM card with 500 MB data and global roaming
• Optional 6V/6W solar panel

Support Material

• Main board technical specifications: v1, v2
• Shields technical specifications: Enviro
• Getting Started Guide (online)
• Technical brochure (PDF)

Product Versions

• v1 bundle has undergone Certification. EU Declaration of Conformance documents is available upon request.
• v2 is the latest development version with the certification process ongoing.

Product Use

• The product is intended for professional and industrial use.
• Connection of external sensors and maintenance operations shall be carried out only by trained personnel.
• It is explicitly stated which product versions conform with EU regulation. Declaration of conformance documents are available upon request.
• All other product versions are intended only for engineering development, research and development, demonstration and/or evaluation purposes used by professionals, and neither are considered by the company to be finished end-product fit for general use, nor fall within the scope of the European Union directives.
