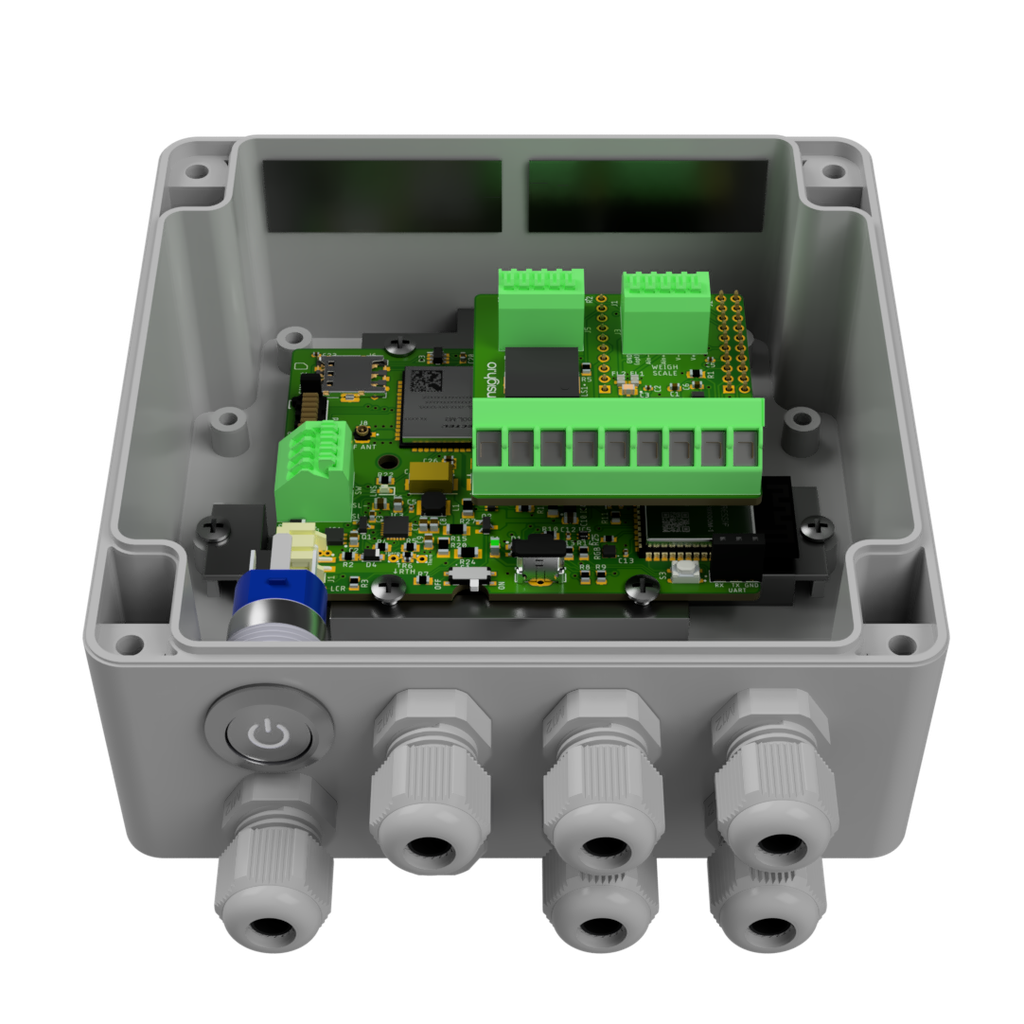

insigh.io Scale IoT Logger

The insigh.io IoT logger includes everything you need to setup your weight measurement based project.

It includes the Scale shield, a sensor expansion board that can control industrial PLCs and host CT sensors for energy monitoring.

Kit components

• Main board

• Machine Sensor Shield with support of

  • 1 Load Cell input

  • Various audio-visual indicators and expansion ports to develop interactive applications

• Box suitable for outdoor deployment with all peripherals

  • Antennas (Cellular & GNSS)
  • External power switch
  • Sensor glands
  • Vent plug
  • Rechargeable battery 4000mAh
  • Pre-loaded SIM card with 500 MB data and global roaming
• Optional 6V/6W solar panel

Support Material

• Main board technical specifications: v1, v2
• Shields technical specifications: Scale
• Getting Started Guide (online)
• Technical brochure (PDF)

Product Use

• The product is intended for professional and industrial use.
• Connection of external sensors and maintenance operations shall be carried out only by trained personnel.
• The specific product version is intended only for engineering development, research and development, demonstration and/or evaluation purposes used by professionals, and neither are considered by the company to be finished end-product fit for general use, nor fall within the scope of the European Union directives.
