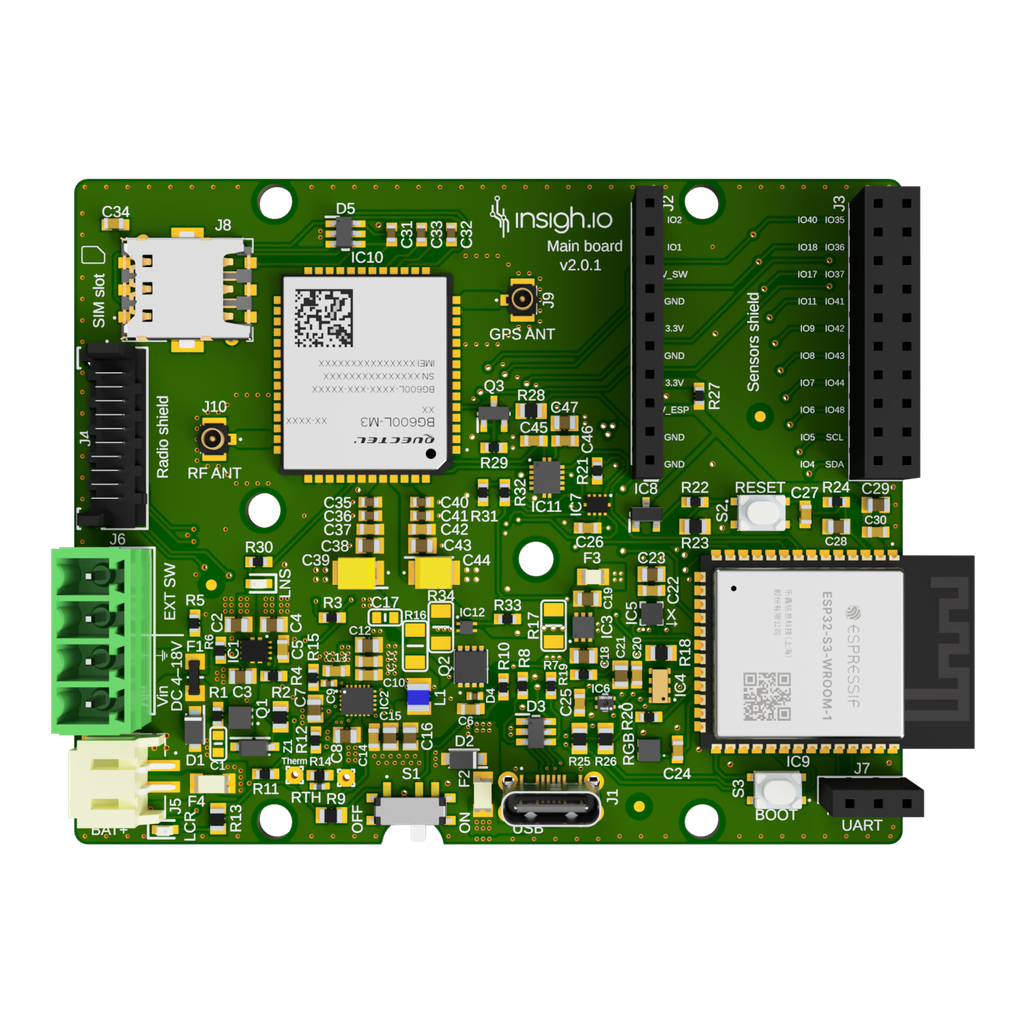

Main Board (v2)

The insigh.io IoT Main Board is the starting point if you want to explore the capabilities of insigh.io. It is the core module of the end-to-end insigh.io offering regardless of your application. Although in practice it is paired with a sensor shield, it can be also used as a "standalone" module. Just add a battery or plug a USB cable, switch it on, configure it and let it connect through your local WiFi network or a public Mobile Network (if you add a SIM card) to our Cloud platform. You can then use the 30-pin header to connect to external sensors, dev kits. Start developing you customized IoT application by yourself or contact us to discuss a tailor-made solution.

Product Versions

• Current version (v2) is the latest development version with the certification process ongoing.
• There is also an older version (v1) which is part of a logger bundle that has undergone Certification. This version is not generally available as a standalone module, but only as part of a logger bundle.

Compatible Parts

This is an list of external parts specs along with indicative compatible parts to begin testing. Feel free to contact us if you're not sure about a specific part's compatibility.

• Battery: LiPo rechargeable 1s1c 3.7-4.2V, with capacity at least 2,200mAh for 2G connection. For outdoor operation use 4,000mAh (example part: AKY0580)

• USB cable: Micro USB

• Antennas

  • Cellular: 824-2170MHz Cellular Flexible (example part: 207235-0100)
  • GNSS: GNSS Flex 100mm Cable Length (example part: 206560-0100)

• SIM card: Physical Nano SIM

• (optional) Solar Panel: 6V nominal voltage, 2W-1W power (example parts: SP2-W, P102C)
• (optional) Connectivity Shield Cable: Ribbon Flex (example part: 92317-1012)

Support Material

• Specs
• Getting Started Guide (online)
• Technical brochure (PDF)

Product Use

• The product is intended for professional and industrial use.
• Connection of external sensors and maintenance operations shall be carried out only by trained personnel.
• This product version is intended only for engineering development, research and development, demonstration and/or evaluation purposes used by professionals, and neither are considered by the company to be finished end-product fit for general use, nor fall within the scope of the European Union directives.
